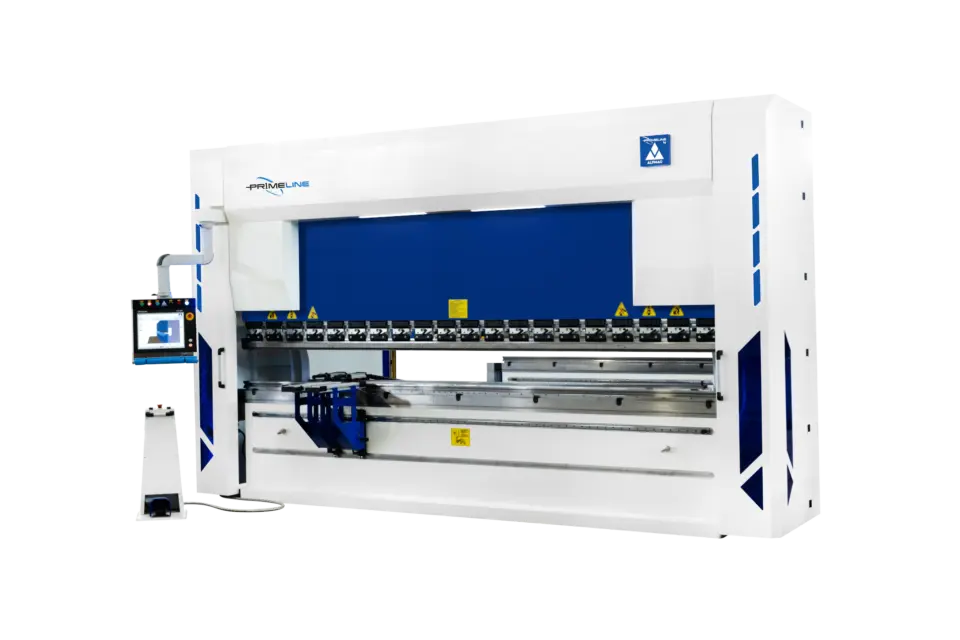

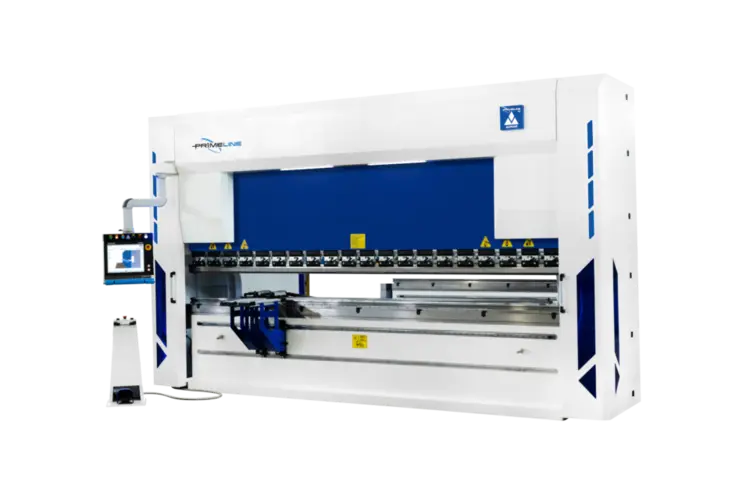

New PRIMELINE C-SERIES | Press Brakes
Have one to sell?
ConditionNew
New
The C Series of hydraulic press brakes are meant for Performance, Accuracy and Speed.
Cylinder pistons are ground, hard-chrome plated. Fully adjustable servo valves paired with linear scales ensure the machine maintains its ±0.0004 repeatability. An easy to operate CNC controller allows to program up to 12 axis . Stroke length can be adjusted and controlled. Two speed ram advance is standard. Controls are contained in a swiveling console mounted on the machine for convenient operation; and, there is also a movable pedestal with two-hand (palm button) control and emergency stop button.
Capacities: 45 to 2500 tons and lengths from 4′ to 40′
STANDARD EQUIPMENT:
• Axes configurations, Model C press brake can configure 4 axes (Y1, Y2, X,R) and maximum 12 axes (Y1, Y2, X1, X2, R1, R2, Z1, Z2, AP3, AP4…)
• Model C, standart WILA type manual crowning systems with opposing wave.
• Model C controller is standard 2D/3D colored graphical big screen standard Cybelec 15T, Delem 58T or ESA675 3D CNC
• Automatically calculations unfolded length, automatically and programmable bend order features, according to the material thickness, material type, tools features standard. 2D/3D graphical color controller provided optimizations of automatically search bend order with collisions check for bending parts
• Frame steel constructions manufacturing certificated raw material has been designed according optimal and minimum deflections resistance criteria of design and analyses requirement
• Steel constructions productions by modern and advanced CNC machining center.
• Hydraulic cylinders, manufactured as precision from solid full material in ALPMAC facilities and made honed.
• Hydraulic pistons, manufactured from forged steel, hardened, grinding is done, and chrome-coated in ALPMAC facilities.
• Hydraulic block and valve made in Germany, originally, high level type for performance and stability.
• ALPMAC press brake have special hydraulic pump have high efficiency condition of low and high pressure range
• Low electricity consumption concept with special hydraulic design and components
• Automatically reference
• Pressing force tonnage automatically calculated according material thickness, tools and checking tools damage and machine safety
• Stroke adjustment, retract features automatically
• Programmable bending fast down and return speed with slow up functions
• Save and recall bending programs, and searching different criteria tools material
• 2 working mode, full automatically and manual
• C frame shape linear scale holders for body deflections compensations, and protected cross working
• Overload alarm system electronically
• Hydraulic maximum limit protect system with safety valve group
• Calculations unfolded length, automatically and programmable bend order features, according to the material thickness, material type, tools features
