New ERCOLINA TB100 TOP BENDER | Pipe, Tube & Bar Benders

Description

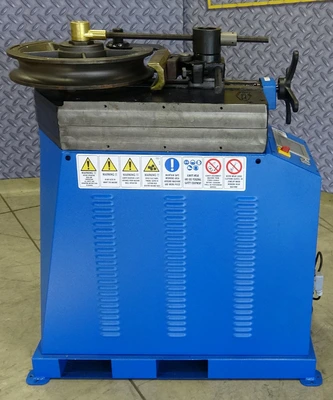

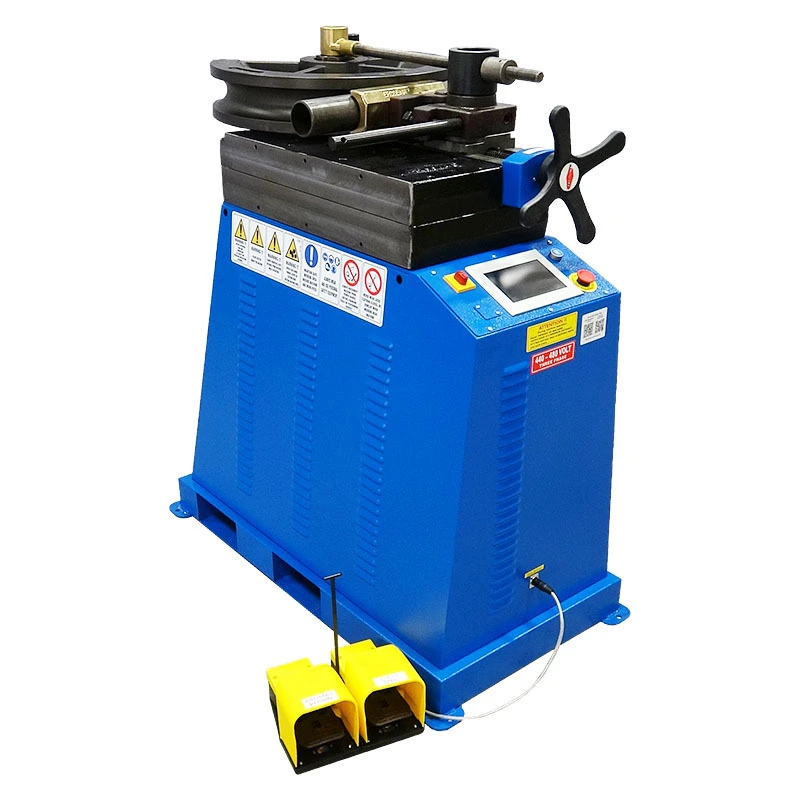

Ercolina TB100 Top Bender is ideal for producing consistent quality bends in large diameter pipe, tubes, squares, rectangular, solids and other profiles.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

KEY FEATURES:
• Mild steel tube capacity 4″
• Pipe capacity 3″ Sch. 40
• Square tube capacity 3-1/2″
• Maximum CLR 17″
• Bend to CLR as small as 2D
• Touch screen programming of bend angle with system diagnostics in multiple languages
• Quick-change tooling system
• Digital display of bend angle
• Material springback compensation
• Foot pedal control of bend and return functions
• Counterbending die positioning monitored electronically for accuracy and repeatability
• Heavy-duty steel gear case
• No hydraulic components
• All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications.
