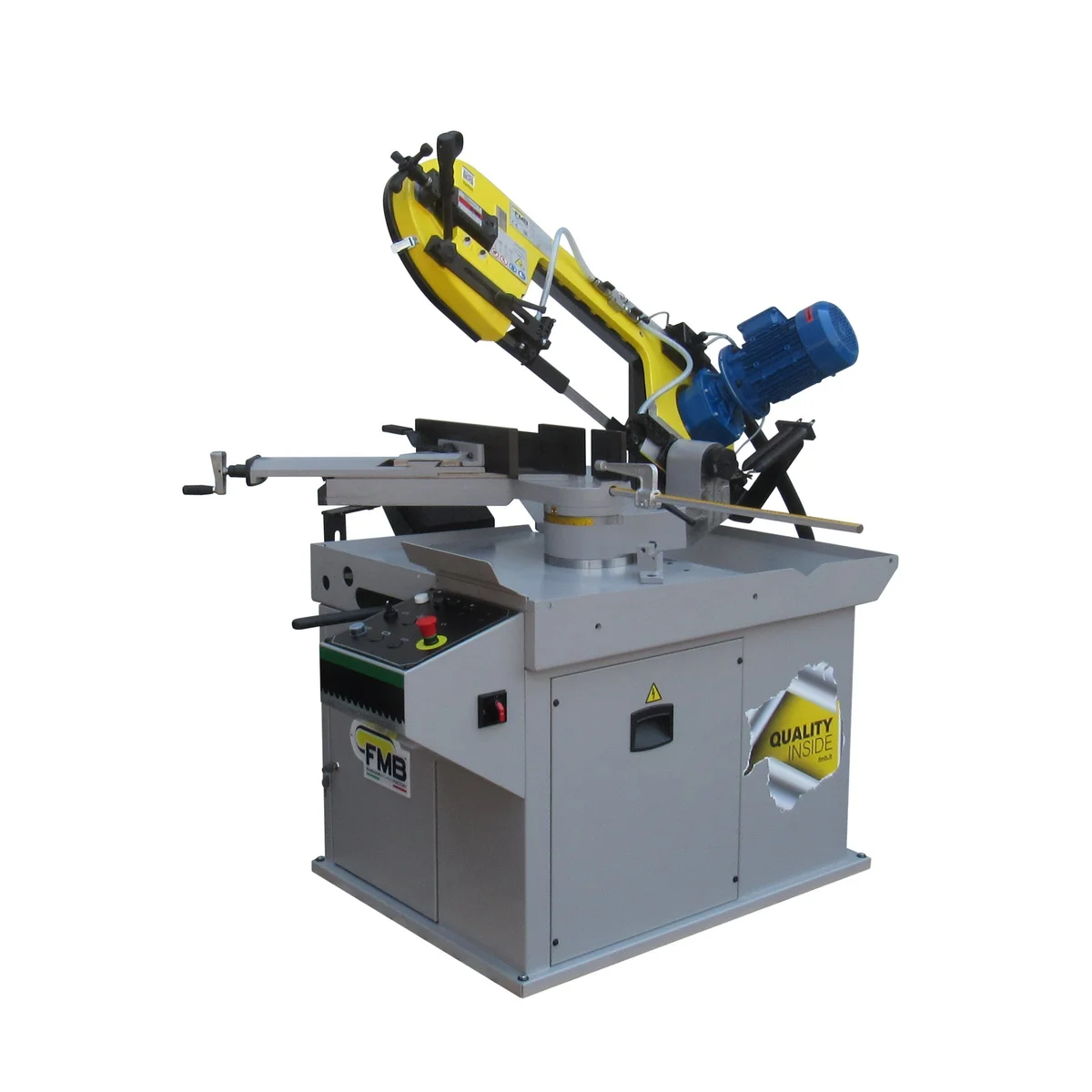

FMB ANTARES DOUBLE MITER BANDSAW

Cutting Capacity O Degree      45 Degree/R   60 Degree/R  45 Degree/Left
Round            7-7/8"        7"            4"            5-1/2"
Rectangle A      7-7/8"x7-7/8" 5-1/3"x7"     4"x4"         5"x5-2/3"
Rectangle B      9"x7-7/8"     7-7/8"x5-1/2" -             6-2/3" x 4"
Square           7-7/8"x7-7/8" 6-7/8"x6-7/8" 4"x4"         5-1/3"x5-1/3"
Blade Size       8’10”x1”x.035”
Blade Speed      115 and 230 FPM (110v/1PH is 1 Speed – 230 FPM)
Saw Motor Power  1.75 HP
Voltages
- Available      220v/3PH, 440v/3PH, 110v/1PH
Foot Print       35”x57”
Weight           750 lbs.
