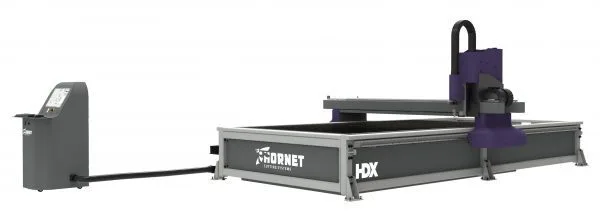

New HORNET CUTTING SYSTEMS HORNET HDX | Plasma Cutters

Contour Bevel System

Increase output by eliminating time consuming secondary finishing processes.

Weld-ready beveled parts
Produces bevels 360° around parts at up to +/- 52°

Rapid Acceleration

Increase part production and labor efficiency with shorter turnaround times.

3000 IPM rapid traverse speed
1/4 G acceleration

Laser Safety Systems

Protect your workers and investment with the HDX auto-shutoff feature.

Complete perimeter safety system
Manually switch from Low Speed to High Speed

5 ft (1.5 m) 6.6 ft (2.0 m) 8.2 ft (2.5 m) 10 ft (3.0 m)
Nominal Cutting Width 60” (1.52 m) 79.20” (2.01 m) 98.40” (2.50 m) 120” (3.05 m)
Width Between Side Frames 78.25 in (1.99 m) 96.25” (2.44 m) 116.25” (2.95 m) 138.25” (3.51 m)
Overall Machine Width 122.50” (3.11 m) 140.50” (3.56 m) 160.50” (4.08 m) 182.50” (4.64 m)
Nominal Cutting Length 144” (3.66 m) 240” (6.10 m) 288” (7.31 m)
Length Between End Frames 203.13” (5.16 m) 323.13” (8.21 m) 333.75” (8.47 m)
Overall Machine Length 222.75” (5.66 m) 342.75” (8.71 m) 364.50” (9.25 m)
Suggested Cutting Table Slat Height 30” (0.76 m)
Maximum Traverse Speed 3000 IPM (76.2 mpm)
Maximum Number of Stations 2 tools (plasma and/or oxy) max or 1 CBS
Maximum Number of Plasma Stations 1
Maximum Number of Oxy-Fuel Stations 1
Machine Input Power 200-240 VAC | 1-Phase | 50/60 Hz | 20-amp Dedicated Circuit
Recommended Plasma Systems Hypertherm® MAXPRO200™, HPR130XD™, HPR400XD™, XPR300™
* Measured in a 60” x 60” area (1.5 m x 1.5 m)

Specifications are subject to change
