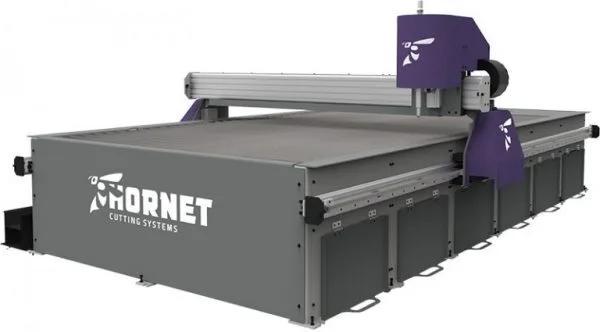

New HORNET CUTTING SYSTEMS HORNET LT | Plasma Cutters

Industrial Cutting

Modular design for quick installation to get you cutting faster.

Full factory assembly
Standard open bottom table; water tray and zoned duct optional
Plug and cut controls

Durable Performance

Heavy duty components will deliver years of dependable service.

Robust-tube frame construction with 12mm hardened bearing shafts
Fully enclosed cable power track
Powder coated metal surfaces

High Powered Flexibility

Small operations can harness the power of high-grade industry functionality.

Standard high-reliability motion package
Upgradable to faster speed and high-definition plasma options as your business grows
Easy-to-operate software control interface and intuitive CAD/CAM drawing/nesting tools

4 ft x 4 ft
(1.2 m x 1.2 m) 4 ft x 8 ft
(1.2 m x 2.4 m) 5 ft x 8 ft
(1.5 m x 2.4 m) 5 ft x 12 ft
(1.5 m x 3.6 m) 6 ft x 12 ft
(1.8 m x 3.6 m)
Effective Cutting Width 4 ft (1.2 m) 4 ft (1.2 m) 5 ft (1.5 m) 5 ft (1.5 m) 6 ft (1.83 m)
Machine Width Without CNC 7.3 ft (2.25 m) 7.3 ft (2.25 m) 8.3 ft (2.55 m) 8.3 ft (2.55 m) 9.3 ft (2.85 m)
Effective Cutting Length 4 ft (1.2 m) 8 ft (2.44 m) 8 ft (2.44 m) 12 ft (3.66 m) 12 ft (3.66 m)
Machine Length without CNC 8.1 ft (2.49 m) 13.1 ft (4.01 m) 13.1 ft (4.01 m) 15.6 ft (4.78 m) 15.6 ft (4.78 m)
Slat Height 30 in (768 mm)
Slat To Heat Shield Spacing 5 in (129 mm)
Machine Height 61 in (1,538 mm)
Maximum Traverse Speed 750 IPM (19,050 mm/min)
Maximum Tools 1
Plasma Power Supplies Hypertherm® Powermax45XP®, Powermax65®, Powermax85®, Powermax105®, Powermax125®
Maximum Cutting Capacity 1 in (25 mm) Mild Steel - Power Supply Dependent
Input Power - CNC & Drives 115/230 VAC | 1-Phase | 50/60 Hz | 10-amp Dedicated Circuit
